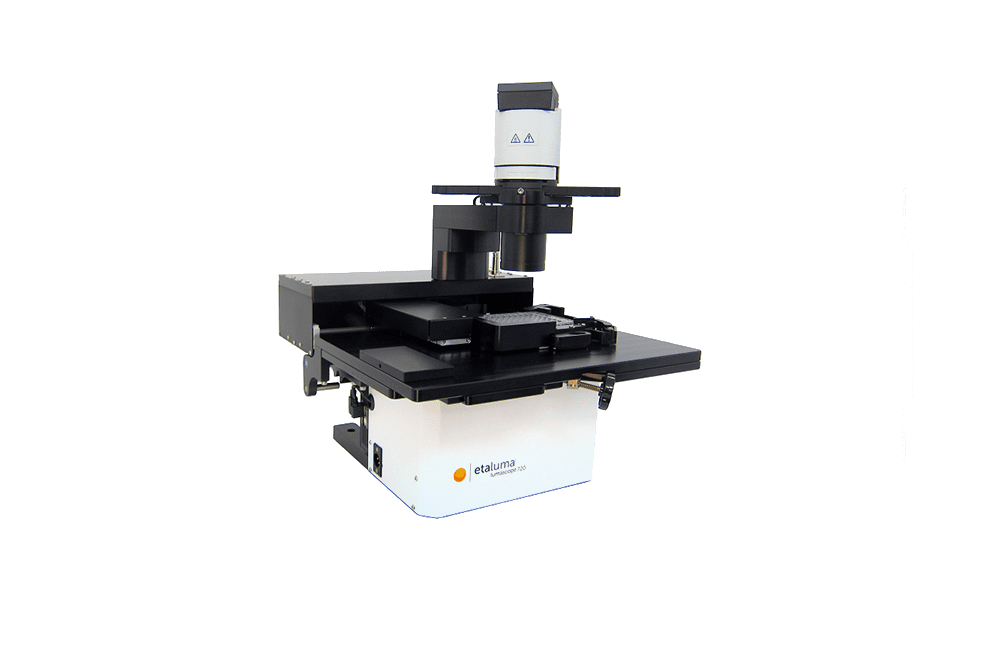

LS720 Microscope

The powerful, new LS720 Microscope adds walk-away automation to the many features and high performance of the flagship 3-color LS620. Exquisite XY motion control, motorized focus that allows autofocus and z-stacks, and easy-to-configure software combine to facilitate your microscopy experiments and high content screens. Place the LS720 in your incubator and you have a live cell imaging system at a fraction of the cost of conventional High Content Analysis systems. Whether imaging multiple fields in your flasks or 1536 wells of cells with 3 fluorophores in a 48 hour time-lapse, the LS720 offers a whole new world of automated microscopy!

  • Request for Quote        More Info

    • Introduction

     Automated XY stage with autofocus in Z provides images (photos), time-lapse series, and videos recorded directly to your computer
     Fully functioning microscope empowers users to visualize cells from microplates, flasks, slides or custom labware
     Modern LED and advanced optical design provide near diffraction-limited (theoretical maximum) resolution
     Robust software allows set-up and control across many locations, including microplates and custom arrays
     Versatile and compact design enables use inside cell culture incubators and hoods
     Detects blue, green and red fluorophores, including BFP, DAPI, FITC, Fluo-4, GFP & mCherry
     Flip-up deck allows easy objective access
     Used manually, but also robot compatible (RS485, RS232, 5V digital interfaces)
     Objective compatibility with standard lenses permits use of your own objectives

    Description

    LS720 Microscope Specifications
    OpticsBlue, green & red fluorescence; brightfield
    Phase ContrastPhase contrast optional
    Objective Options2.5x, 4x, 10x, 20x, 40x, 60x, and 100x(oil) magnification
    Objective CompatibilitiesRMS-threaded, infinity corrected, 45 mm parfocal distance
    Fluorescence FiltersBlue: Excitation 370-410 nm; Emission 429-462 nm
    Green: Excitation 473-491 nm; Emission 502-561 nm
    Red: Excitation 580-598 nm; Emission 612-680 nm
    CameraHigh Sensitivity Monochrome CMOS Sensor; C-mount
    Image FormatsJPG, BMP, TIF, GIF, or PNG
    Image Size100 x 100 to 1900 x 1900 pixels
    Field of View0.9 x 0.9 mm with 20x objective
    Video RatesUp to 10 frames/second (fps); with reduced frame size, up to 30 fps
    Automated XY StageSBS nest, 6- to 1536-well microplates; microfluidic chambers (contact Etaluma)
    SubdeckNo automation; most flasks, dishes, other
    Stage Travel Range110 mm x 74 mm
    Stage Move Speed25 mm/sec
    Well-to-well time (seconds)Image 96 wells: a) 1 color focus & image, 13 min, b) 3 color focus & image, 34 min
    Computer RequirementsWindows 7, 8, 8.1, 10; 2 monitors recommended
    Automation FriendlySDK available
    Power RequirementsUSB for Lumascope; 100-240 V, 50-60 Hz for AutoStage
    Dimensions, With Phase37.4 cm W x 43.8 cm D x 46.8 cm H [14.7 in W x 17.3 in D x 18.4 in H]
    Weight13 kg (29 lb) without phase; 14 kg (31 lb) with phase
    Operating Conditions4°C – 42°C, 5% – 95% RH non-condensing
