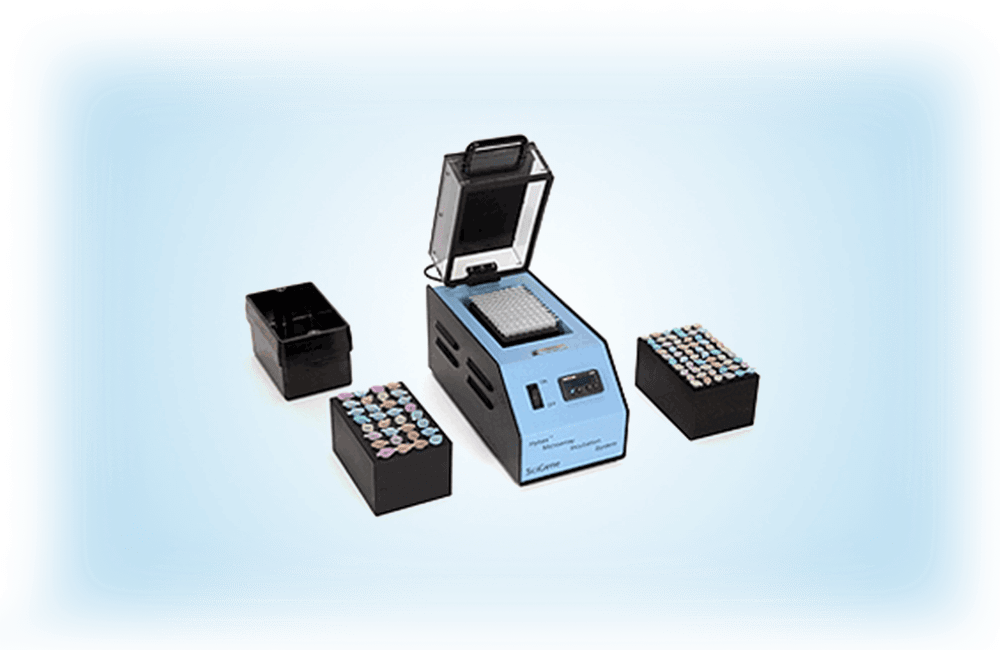

Compact, flexible high precision tube and plate heating system with a heated lid. The system consists of a heating base with a variety of interchangeable, removable blocks for widely used tubes and plates. A water bath insert (625 ml) is also available for heating buffers for washing microarrays or other applications.
Compact, flexible high precision tube and plate heating system with a heated lid. The system consists of a heating base with a variety of interchangeable, removable blocks for widely used tubes and plates. A water bath insert (625 ml) is also available for heating buffers for washing microarrays or other applications.
Specified by Illumina for NGS sample prep and BeadChip applications
Specified by Affymetrix for QuantiGeneView assays
Regulates sample temperatures ± 0.1°C
Heated lid minimizes cap condensation
Blocks for 0.2 PCR, 0.6 and 1.5 ml tubes
Simple temperature calibration for CLIA
Specification | Description |
Equipment Included | Hybex heating base |
Electrical Cat # 1057-30-0 Cat # 1057-30-2 | 115V AC, 50/60Hz, 3A 230V AC, 50/60Hz, 1.6A |
Dimensions (HxWxD) | 10 x 6 x 12 inches (21 x 15 x 30 cm) |
Instrument Weight | 6 lbs (3 kg) net |
Performance and Controls Temperature Range Temperature Regulation | ambient +5.0°C to 99.0°C ± 0.1°C from set point |
