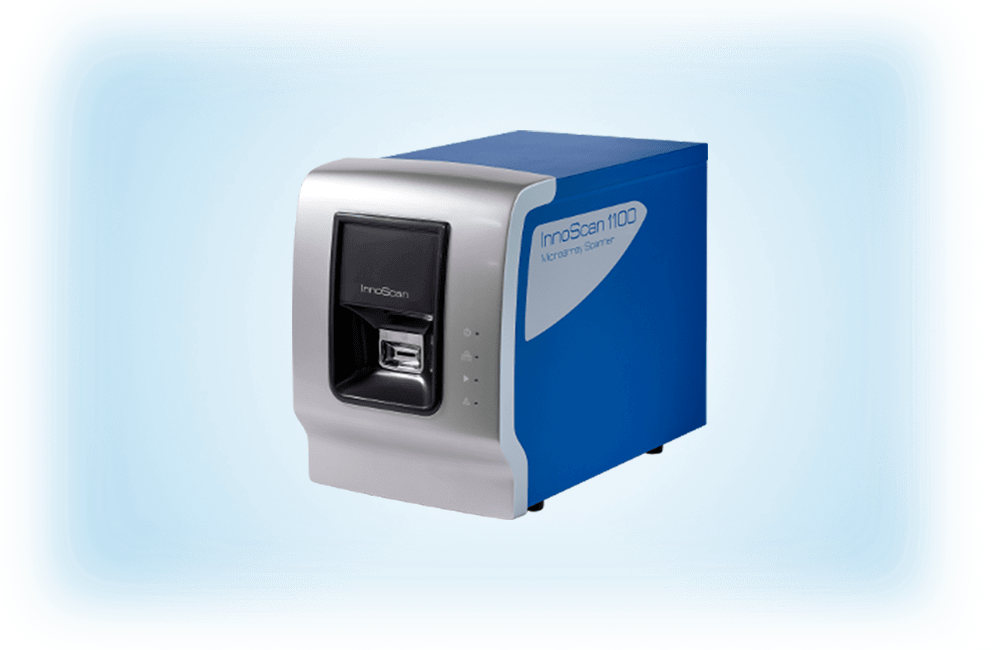

InnoScan 1100 AL
Characterized by its ease of use, performance and versatility, the InnoScan 1100 AL is the ideal tool for cell microarrays as well as three color microarrays.
Characterized by its ease of use, performance and versatility, the InnoScan 1100 AL is the ideal tool for cell microarrays as well as three color microarrays.
Characterized by its ease of use, performance and versatility, the InnoScan 1100 AL is the ideal tool for cell microarrays as well as three color microarrays.
High-quality images: With a resolution of up to 0.5µm/pixel or a 20x objective equivalent, the InnoScan 1100 AL is the highest resolution microarray scanner on the market. This combined with a real-time autofocus system and confocal PMT detection, the InnoScan 1100 AL provides high-quality images for detailed analysis of your microarrays.
Easy automation: Provided with a user-friendly image acquisition software and 24-slide autoloader, the InnoScan 1100 AL is capable of fully automated scanning of 24 slides at a time.
Multiplexed whole slide imaging: The InnoScan 1100 AL is capable of scanning any microscope slide with various substrates: cells, tissue, proteins, DNA, glycans, peptides and others. Equipped with three excitation channels, it empowers users with more multiplexing capabilities, thus allowing the analysis of several samples or markers on the same slide.
| Specifications | Data |
| Resolution | 0.5-40 µm/pixel |
| Excitation wavelength | 488nm 532nm 635nm |
| Compatible fluorophores | 488nm: Cy2, Alexa488, FITC 532 nm : Cy3, Alexa 546, Alexa 555, Sytox orange 635 nm : Cy5, Alexa 647, Alexa 660, Draq5 |
| Compatible slides | Standard microscope slides norm ISO 8037-1 25-26 x 75-76 mm2 / 1” x 3” ; thickness: 0.9 – 1.2 mm |
| Maximal scan area | 22 x 74 mm2 |
| Focus | Automatic or manual |
| Detection | Analog PMT confocal detection |
| PMT gain | Linear from 0 to 100 % (step 0.1 from 0.1 to 1% and 1 from 1 to 100%) |
| Scanning mode | Simultaneous or sequential |
| Scanning speed | 20 to 35 lines/sec. (25 lines/sec. max for 0.5µm pixel size) |
| Scanning time | 3.5 minutes to scan a whole slide at a 10 µm/pixel and 3 colors 10.5 min. for an area of 22 x 22 mm2 at 1 µm/pixel and 3 colors |
| Dimensions | 32 x 55 x 43 cm3 (13” x 22” x 17”) |
| Weight | 30 Kg (67 lbs) |
| Interface | Ethernet |
| Barcode scanner | Yes |
| Image processing software | Mapix |
| Image file format | 16-bit and 20-bit TIFF |
