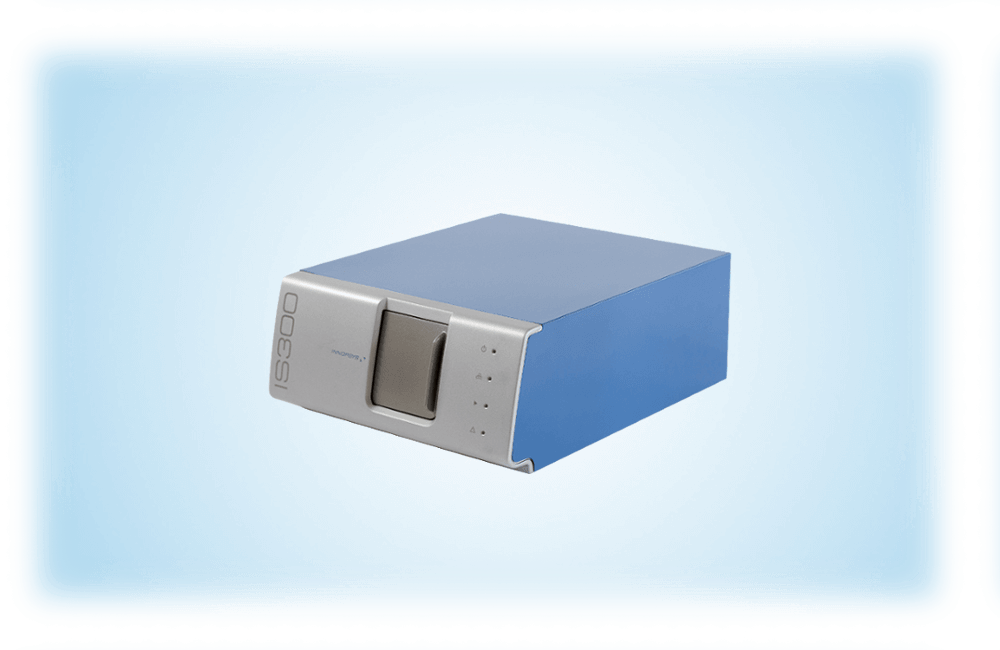

Characterized by its ease of use, performance and customization, the InnoScan 300 is the ideal tool for clinical as well as diagnostic applications.
User-friendly: Compact, equipped with one excitation wavelength and provided with easy and automated image acquisition software, MAPIX, the InnoScan 300 is the most user-friendly and versatile scanner on the market.
Characterized by its ease of use, performance and customization, the InnoScan 300 is the ideal tool for clinical as well as diagnostic applications.
User-friendly: Compact, equipped with one excitation wavelength and provided with easy and automated image acquisition software, MAPIX, the InnoScan 300 is the most user-friendly and versatile scanner on the market.
Performance: The InnoScan 300 provides high-quality images thanks to confocal PMT detection. It is also fast, being able to scan a whole slide in less than 4 minutes.
Customization: The InnoScan 300 is fully customizable from scanner design and branding to image analysis with the use of plug-ins to fit your application. It is CE-IVD certification-ready, making it the perfect tool for your diagnostic test.
| Specifications | Data |
| Resolution | 3 – 40 µm/pixel |
| Excitation wavelength | 532 nm and 635 nm |
| Compatible fluorophores | 532 nm : Cy3, Alexa 546, Alexa 555 635 nm : Cy5, Alexa 647, Alexa 660 |
| Compatible slides | Standard microscope slides norm ISO 8037-1 25-26 x 75-76 mm2 / 1” x 3” ; thickness: 0.9 – 1.2 mm |
| Maximal scan area | 22 x 74 mm2 |
| Focus | Automatic or manual |
| Detection | Digital PMT and real confocal detection |
| PMT gain | Linear from 0 to 100 % |
| Scanning mode | Simultaneous or sequential |
| Scanning speed | 10 to 35 lines/sec. |
| Scanning time | 3.55 minutes to scan a whole slide with a resolution of 10 µm/pix |
| Dimensions | 278 x 457 x 369 mm3 (10.8″ x 18.0″ x 14.5″) |
| Weight | 15.5 Kg |
| Interface | Ethernet |
| Barcode scanner | Yes |
| Image processing software | Mapix |
| Image file format | 16-bit and 20-bit TIFF |
