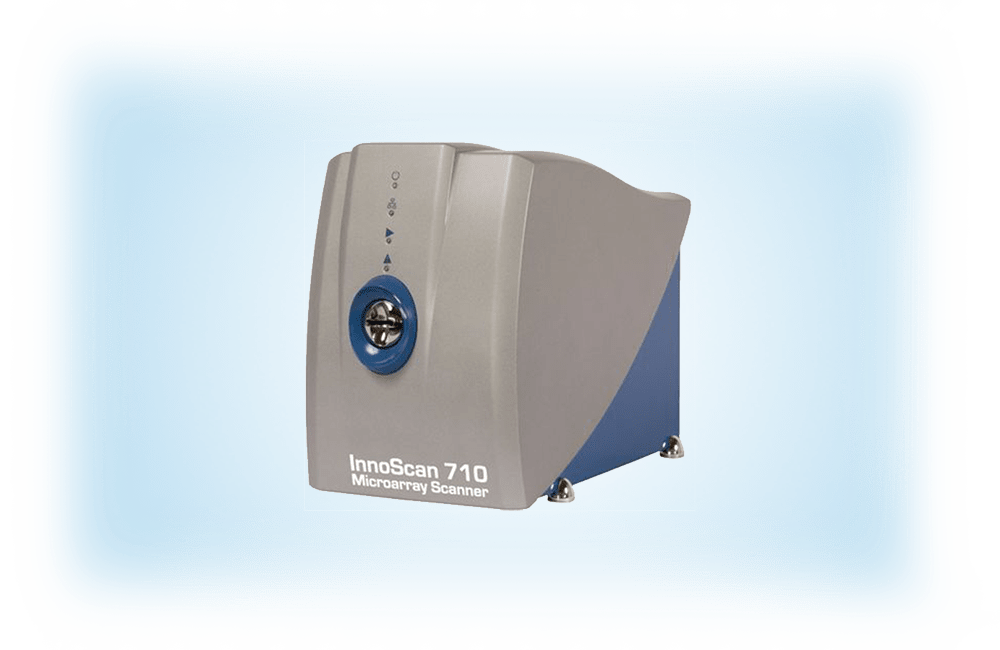

InnoScan 710
Speed: with its patented XY motorisation, the InnoScan 710 is the fastest scanner on the market with adjustable reading speed from 10 to 35 lines per second (capable of scanning slides at 10 μm/pixel in less than 4 minutes).
Speed: with its patented XY motorisation, the InnoScan 710 is the fastest scanner on the market with adjustable reading speed from 10 to 35 lines per second (capable of scanning slides at 10 μm/pixel in less than 4 minutes).
Speed: with its patented XY motorisation, the InnoScan 710 is the fastest scanner on the market with adjustable reading speed from 10 to 35 lines per second (capable of scanning slides at 10 μm/pixel in less than 4 minutes).
Reliable and traceable results: with a barcode reader, InnoScan 710 provides accurate control of acquired images. InnoScan 710 is supplied with a validation slide and associated Mapix software that verifies scanner performance.
Routine use: InnoScan 710 is a low cost, portable scanner capable of reading medium density microarrays at a maximum resolution of 3 µm/pixel.
| Specifications | Data |
| Resolution | 3 – 40 µm/pixel |
| Excitation wavelength | 532 nm and 635 nm |
| Compatible fluorophores | 532 nm : Cy3, Alexa 546, Alexa 555 635 nm : Cy5, Alexa 647, Alexa 660 |
| Compatible slides | Standard microscope slides norm ISO 8037-1 25-26 x 75-76 mm2 / 1” x 3” ; thickness: 0.9 – 1.2 mm |
| Maximal scan area | 22 x 74 mm2 |
| Focus | Automatic or manual |
| Detection | Digital PMT and real confocal detection |
| PMT gain | Linear from 0 to 100 % |
| Scanning mode | Simultaneous or sequential |
| Scanning speed | 10 to 35 lines/sec. |
| Scanning time | 3.55 minutes to scan a whole slide with a resolution of 10 µm/pix |
| Dimensions | 278 x 457 x 369 mm3 (10.8″ x 18.0″ x 14.5″) |
| Weight | 15.5 Kg |
| Interface | Ethernet |
| Barcode scanner | Yes |
| Image processing software | Mapix |
| Image file format | 16-bit and 20-bit TIFF |
