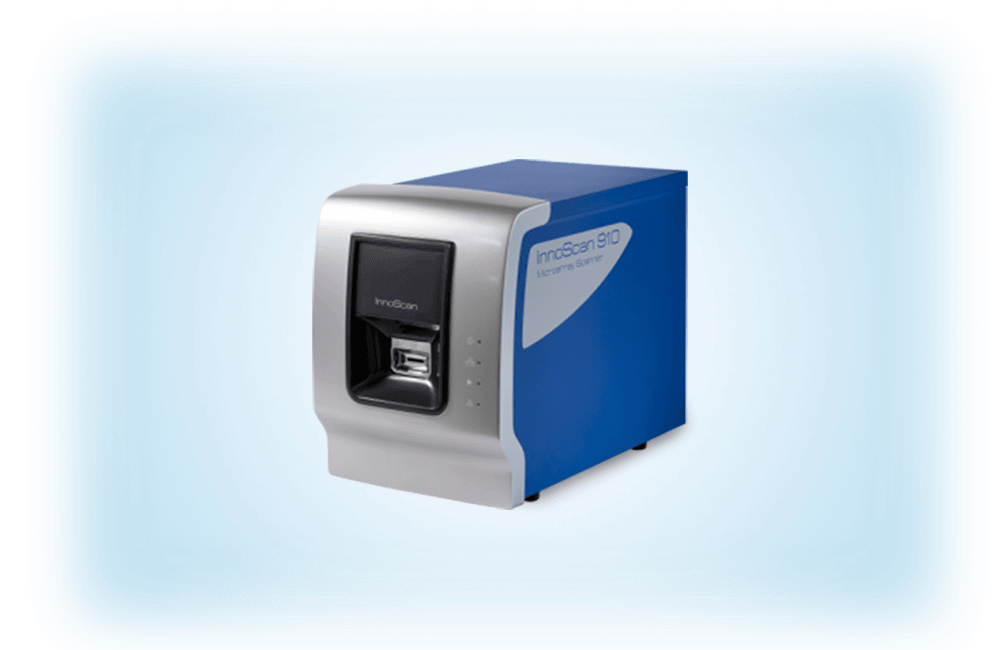

InnoScan 910
Characterized by its simplicity of use, competitive price and superior image quality, the InnoScan 910 is the ideal tool for scanning most high-density microarrays currently available on the market.
Characterized by its simplicity of use, competitive price and superior image quality, the InnoScan 910 is the ideal tool for scanning most high-density microarrays currently available on the market.
Characterized by its simplicity of use, competitive price and superior image quality, the InnoScan 910 is the ideal tool for scanning most high-density microarrays currently available on the market.
High resolution: InnoScan 910 is a high-resolution 2-colour fluorescence scanner. It is capable of reading microarrays at a very high image quality with a resolution of 1µm/pixel.
Speed: Capable of simultaneously reading 2 detection channels in 3.55 minutes (at 10µm/pixel maximum reading area); InnoScan 910 is the fastest scanner on the market with a sweep speed which adjustable from 10 to 35 lines/second.
Reliable and traceable results: With a barcode reader, InnoScan 910 provides accurate control of acquired images. InnoScan 910 is supplied with a validation slide and proprietary Mapix software which verifies scanner performance.
Given the size of the images obtained (5.74 GB to read an entire slide at 1 µm resolution), Mapix image analysis software has been specially designed to handle large files.
| Specifications | Data |
| Resolution | 1 – 40 µm/pixel |
| Excitation wavelength | 532 nm and 635 nm |
| Compatible fluorophores | 532 nm : Cy3, Alexa 546, Alexa 555 635 nm : Cy5, Alexa 647, Alexa 660 |
| Compatible slides | Standard microscope slides norm ISO 8037-1 25-26 x 75-76 mm2 / 1” x 3” ; thickness: 0.9 – 1.2 mm |
| Maximal scan area | 22 x 74 mm2 |
| Focus | Automatic or manual |
| Detection | Analog PMT and real confocal detection |
| PMT gain | Linear from 0.1 to 100 % Possible gain < 1% with 0.01 step |
| Optical filter | 7 position filter wheel 1 standard fluorescence filter and 1 neutral density by channel (5 additional filters on request) |
| Scanning mode | Simultaneous or sequential |
| Scanning speed | 10 to 35 lines/sec. |
| Scanning time | 3.5 minutes to scan a whole slide at a 10 µm/pixel resolution |
| Dimensions | 316 x 549 x 432 mm3 (12.5” x 21.6” x 17.0”) |
| Weight | 28 Kg (62 lbs) |
| Interface | Ethernet |
| Barcode scanner | Yes |
| Image processing software | Mapix |
| Image file format | 16-bit and 20-bit TIFF |
