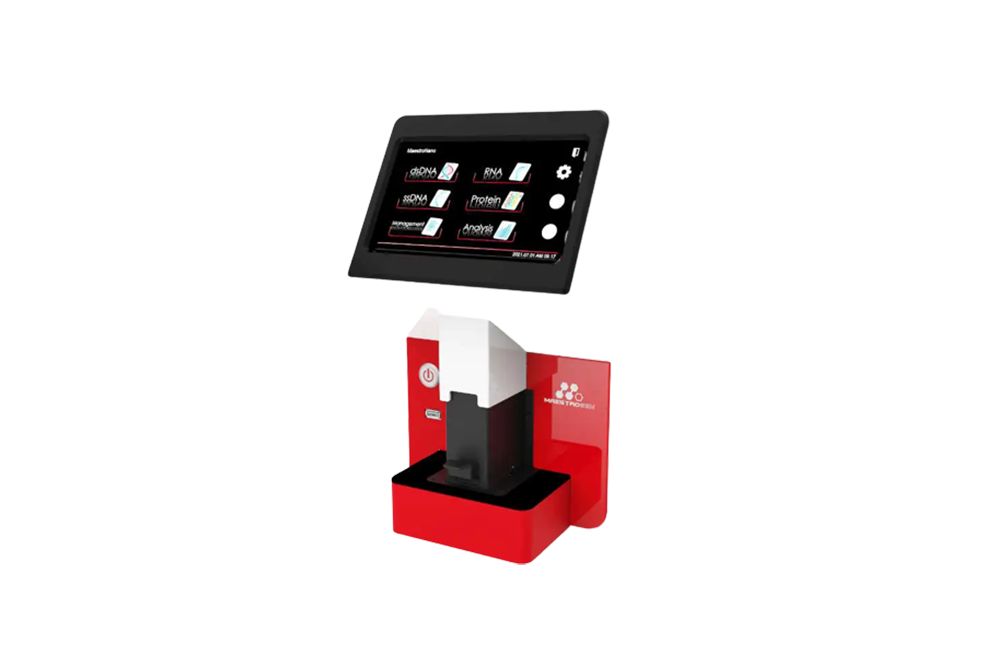

Maestrogen has a whole new design with MaestroNano Pro which is a specialized instrument for biochemical research, especially for micro-volume solution concentration measurement for DNA, and RNA Protein samples. It realizes a user-friendly interface, accurate measurement, a competitive price, and a stylish industrial design.
MaestroNano Pro is a whole new technology of optical system design of micro volume spectrophotometer. There is NO optical fiber needed, moreover, with the vertical slide design that the sample measuring area is also more durable and stable. MaestroNano Pro has a reliable measurement range of concentration from 2 to 2000 (ng/μL) and has a great resistance for the interference of ambient light to get more accurate measurement.
| Measurement Sample Size 2 ul | (A)OD230nm, OD260nm, OD280nm, OD320nm |
| Measurement Data Output (B)Sample concentration (ng/ul) | (C)OD260nm/OD230nm, OD260nm/OD280nm |
| Minimum Concentration | 2 ng/ul (dsDNA) |
| Maximum Concentration | 2,000 ng/ul (dsDNA) |
| Light Propagation Material | Quartz glass |
| Absorbance Range (10mm) | 0.04 ~ 40 |
| Pathlength | ~0.5 mm |
| Measurement Time | < 5 sec |
| Operation System | Android OS (ver. 4.4.3) |
| LCD Resolution | 7 inches, 1024(W)X 600(H) dots matrix |
| Light Source | Xenon flash lamp |
| Internal Storage | 32GB |
| Data Output Interface | Thermal printer 1. Wi-Fi X 1 (USB dongle) 2. OTG USB X 1 (connected to PC to access) |
| Data Connection interface | 3. Ethernet X 1 (RJ-45) 4. USB X 2 |
| Maintenance | Auto diagnosis, Calibration Program, Fix pathlength |
| Operating Voltage | 12 V |
| Dimensions | 26(W) X 26(D) X 20(H) cm |
| Weight | 4.2 Kg |
