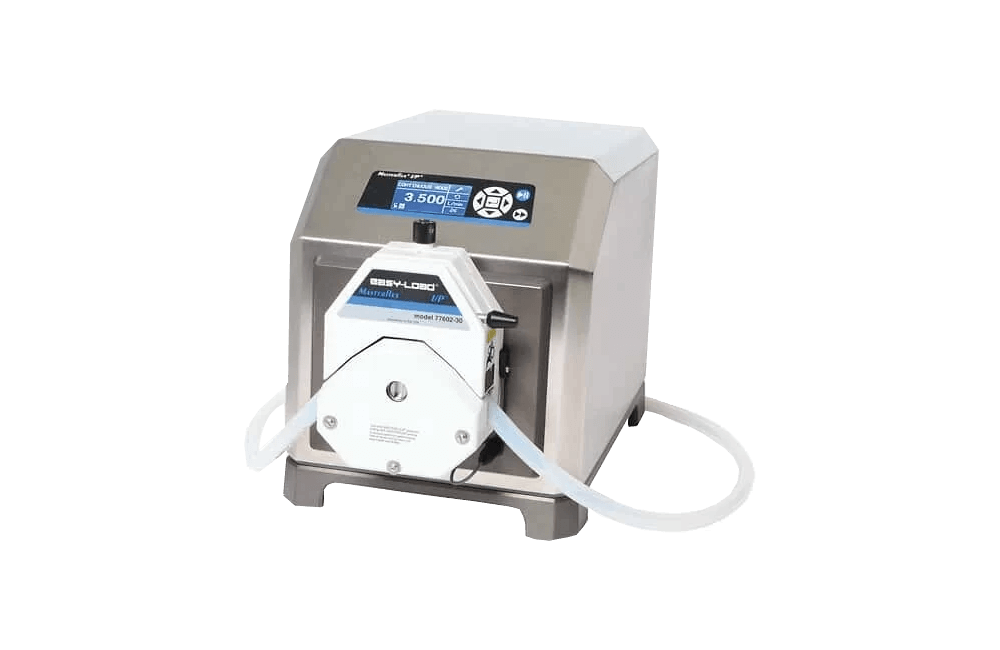

Precision drives feature a programmable dispense interval that lets you set the delay between dispense cycles for convenient, automated dispensing by time or by volume. Programmed calibration ensures dispense and display accuracy—drive stores one calibration value per tubing size. Program the drive via the simple membrane keypad; keypad lock/unlock feature protects settings. Select tubing size and enter desired flow rate—drive locks in required rpm.

– Flow rate 0.001 to 8 LPM with included I/P tubing
– Digital interface with graphical LCD shows pump performance and operating mode— continuous run, timed dispense, copy dispense, or volume dispense
– Remote control available using analog communication—voltage, current and contact closure
– Select your preferred language from the user-friendly menu for programming and operation
– Dispense by Volume in mL (0.001 to 9,999 mL), L, or gal; Copy—1 to 9,999 dispense cycles; or Time—time interval of on/off cycles (1 sec to 99 hr, 59 min, 59 sec per cycle)
– Antidrip function ensures dispensing accuracy
– Brushless, maintenance-free motor offers ±0.1% speed control accuracy with a 6000 to 1 turndown ratio
– Rugged housing is NEMA 4X (IP66) rated for washdown
– Choose models with open head sensor technology for enhanced user safety
