Microarray Plastic Slides

Our products include plastic and glass slides as well as functionalized 96-well plates for DNA-, peptide- or protein microarrays. Applications range from low density microarrays for diagnostic tests to ultra-high density arrays for pharma screening.
The slides are produced with standard dimensions of 25 x 75 x 1 mm. Additionally, we offer customized slides and alternative glass formats with surface modifications tailored to your specific application.

Yêu Cầu Báo Giá

Giới Thiệu

2D-functionalised glass slides

Id	Surface Modifications	Product Dimensions	Packaging Volume
104 00 021	2D-Amino	25 x 75 x 1 mm	25 Slides/Box
104 00 025	2D-Amino	25 x 75 x 1 mm	5 Slides/Box
104 00 121	2D-Carboxy	25 x 75 x 1 mm	25 Slides/Box
104 00 125	2D-Carboxy	25 x 75 x 1 mm	5 Slides/Box
104 00 221	2D-Epoxy	25 x 75 x 1 mm	25 Slides/Box
104 00 225	2D-Epoxy	25 x 75 x 1 mm	5 Slides/Box
104 00 321	2D-Aldehyde	25 x 75 x 1 mm	25 Slides/Box
104 00 325	2D-Aldehyde	25 x 75 x 1 mm	5 Slides/Box
104 00 421	2D-Activated Amino (PDITC)	25 x 75 x 1 mm	25 Slides/Box
104 00 425	2D-Activated Amino (PDITC)	25 x 75 x 1 mm	5 Slides/Box
104 00 521	2D-Thiol	25 x 75 x 1 mm	25 Slides/Box
104 00 525	2D-Thiol	25 x 75 x 1 mm	5 Slides/Box
104 00 621	2D-Azide	25 x 75 x 1 mm	25 Slides/Box
104 00 625	2D-Azide	25 x 75 x 1 mm	5 Slides/Box

3D-functionalised glass slides

Id	Surface Modifications	Product Dimensions	Packaging Volume
104 00 001	3D-Amino	25 x 75 x 1 mm	25 Slides/Box
104 00 005	3D-Amino	25 x 75 x 1 mm	5 Slides/Box
104 00 101	3D-Carboxy	25 x 75 x 1 mm	25 Slides/Box
104 00 105	3D-Carboxy	25 x 75 x 1 mm	5 Slides/Box
104 00 201	3D-Epoxy	25 x 75 x 1 mm	25 Slides/Box
104 00 205	3D-Epoxy	25 x 75 x 1 mm	5 Slides/Box
104 00 301	3D-Aldehyde	25 x 75 x 1 mm	25 Slides/Box
104 00 305	3D-Aldehyde	25 x 75 x 1 mm	5 Slides/Box
104 00 401	3D-NHS	25 x 75 x 1 mm	25 Slides/Box
104 00 402	3D-NHS(hydrophilic)	25 x 75 x 1 mm	25 Slides/Box
104 00 405	3D-NHS	25 x 75 x 1 mm	25 Slides/Box
104 00 406	3D-NHS(hydrophilic)	25 x 75 x 1 mm	5 Slides/Box
104 00 431	3D-Activated Amino (PDITC)	25 x 75 x 1 mm	25 Slides/Box
104 00 435	3D-Activated Amino (PDITC)	25 x 75 x 1 mm	5 Slides/Box
104 00 441	3D-Maleimide	25 x 75 x 1 mm	25 Slides/Box
104 00 445	3D-Maleimide	25 x 75 x 1 mm	5 Slides/Box
104 00 501	3D-Thiol	25 x 75 x 1 mm	25 Slides/Box
104 00 505	3D-Thiol	25 x 75 x 1 mm	5 Slides/Box
104 01 201	Covalently coated Poly-L-Lysin	25 x 75 x 1 mm	25 Slides/Box
104 02 201	Covalently coated Streptavidin	25 x 75 x 1 mm	5 Slides/Box
104 02 205	Covalently coated Streptavidin	25 x 75 x 1 mm	25 Slides/Box
104 03 201	Covalently coated Streptavidin	25 x 75 x 1 mm	5 Slides/Box
104 03 205	Covalently coated Streptavidin	25 x 75 x 1 mm	25 Slides/Box
104 04 205	Covalently coated Avidin	25 x 75 x 1 mm	25 Slides/Box

Mô Tả

Technical specifications :

Packaging :

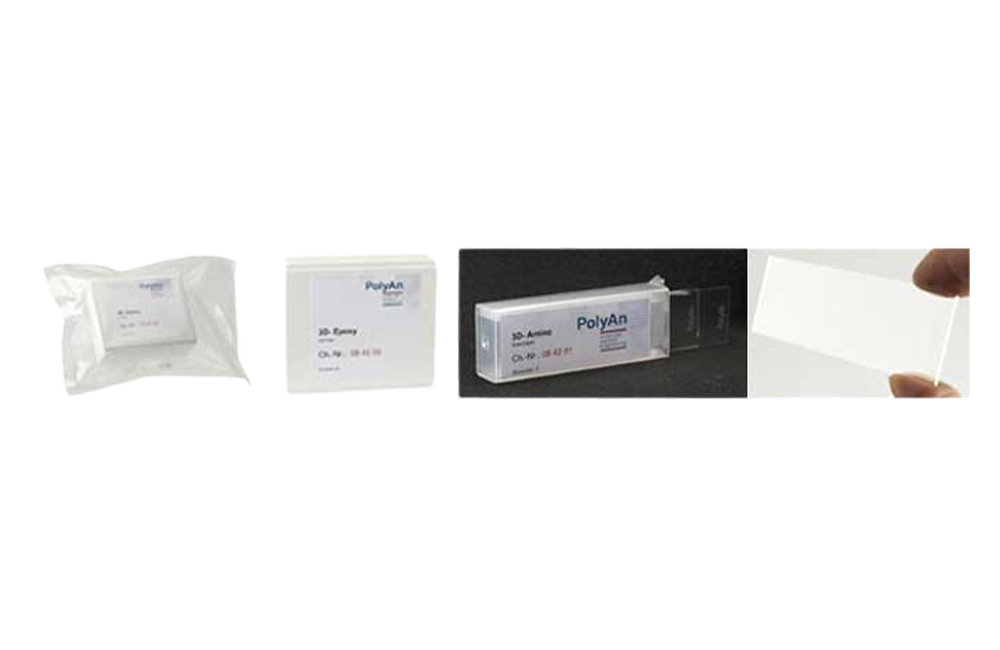

The slides are packaged in inert atmospheric boxes, with a capacity of 25 or 5 slides per box.

Storage :
PolyAn’s slides are characterised by a long shelf-life when stored dry, at room temperature and protected from sunlight. All slides are packaged in boxes under Argon atmosphere to avoid contamination with particles. The Argon atmosphere also minimises degradation of the reactive surface through contact with air or humidity.
